Making moulds and tools

We have our internal shop making moulds for  plastic, thermoplastic and rubber moulding along with shearing and press tools and jigs. We also make metal sheet forming tools.

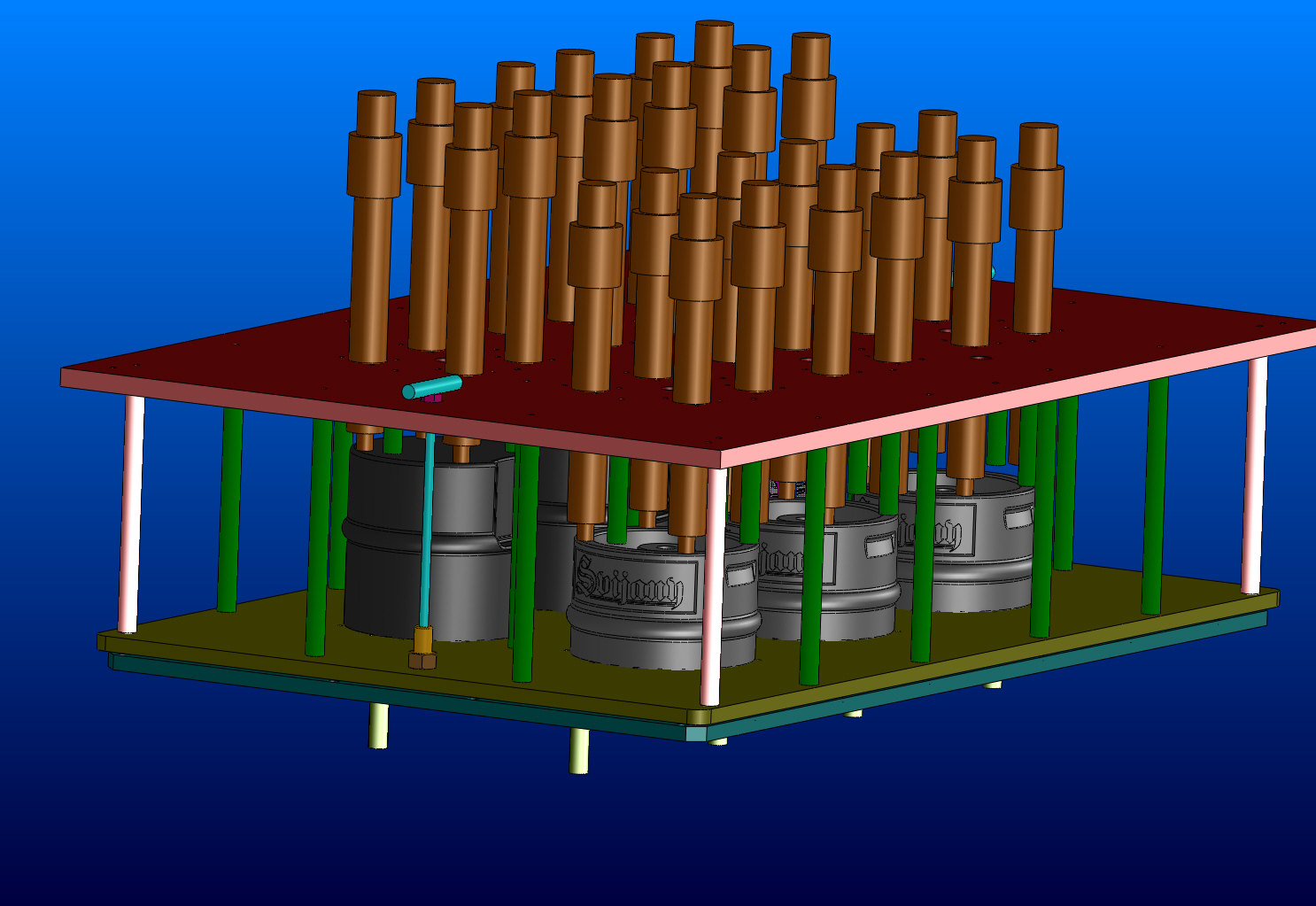

Development of moulds and parts, Omnipack, mould 2

Within manufacture, we are able to ensure:

  •  design">vývoj + výkresy
  • 3D konstrukci včetně simulace natékání
  • výrobu prototypu
  • sériovou výrobu
  • přesnost výroby je zajištěna nejmodernějším 3D měřením

Examples of the most frequently made moulds for moulding plastics

For the manufacture and design of injection moulds, we use SolidWorks, SolidCAM, SurfCAM and HSMWorks.

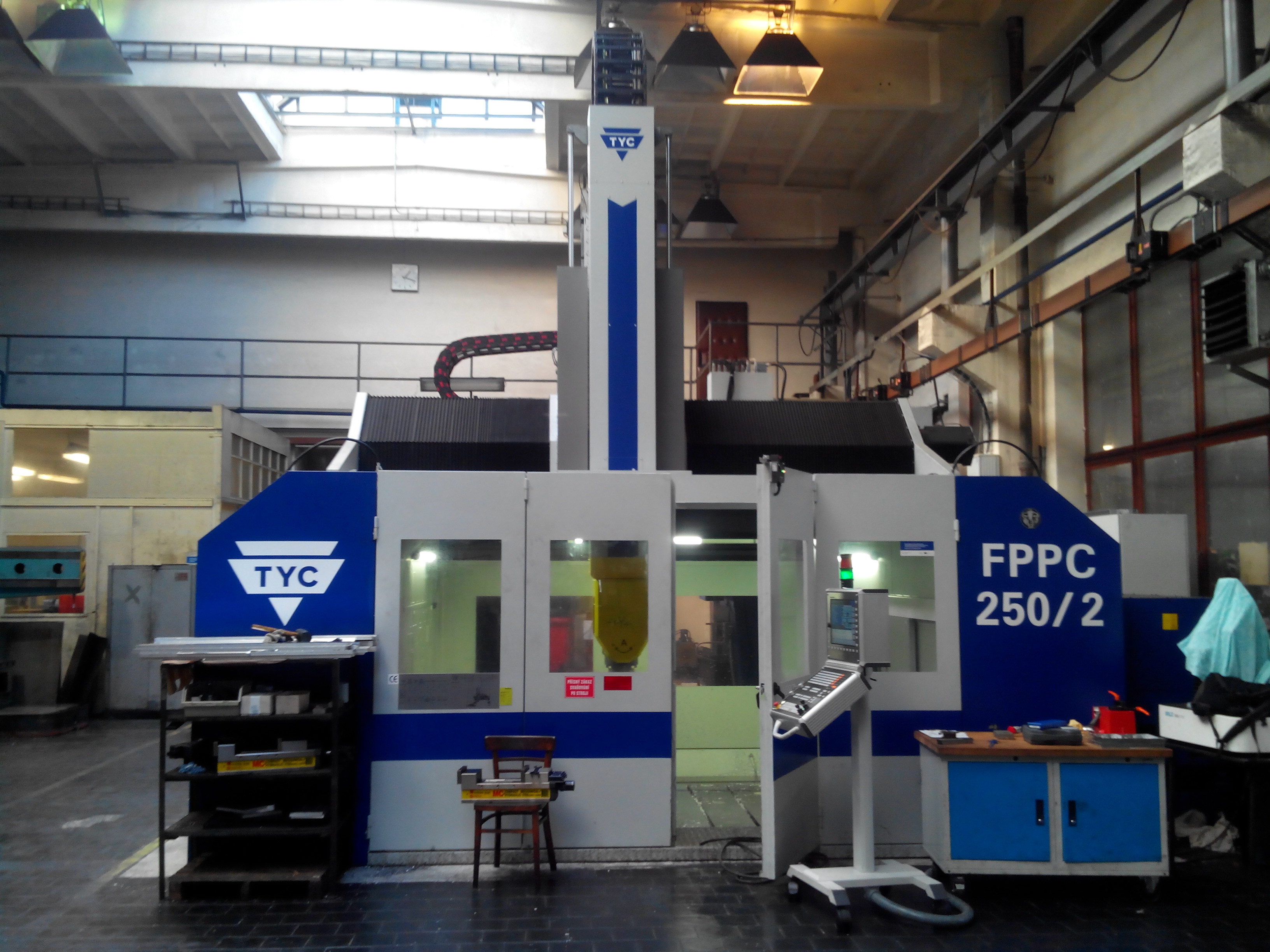

5-axis centre, manufacture of parts, moulds and tools
We specialize in:
  • single and multiple moulds with hot runner systems and with cold runners
  • moulds enabling to insert metal pieces
  • moulds with hydraulic and pneumatic systems
  • stack moulds
  • moulds for thin-walled mouldings

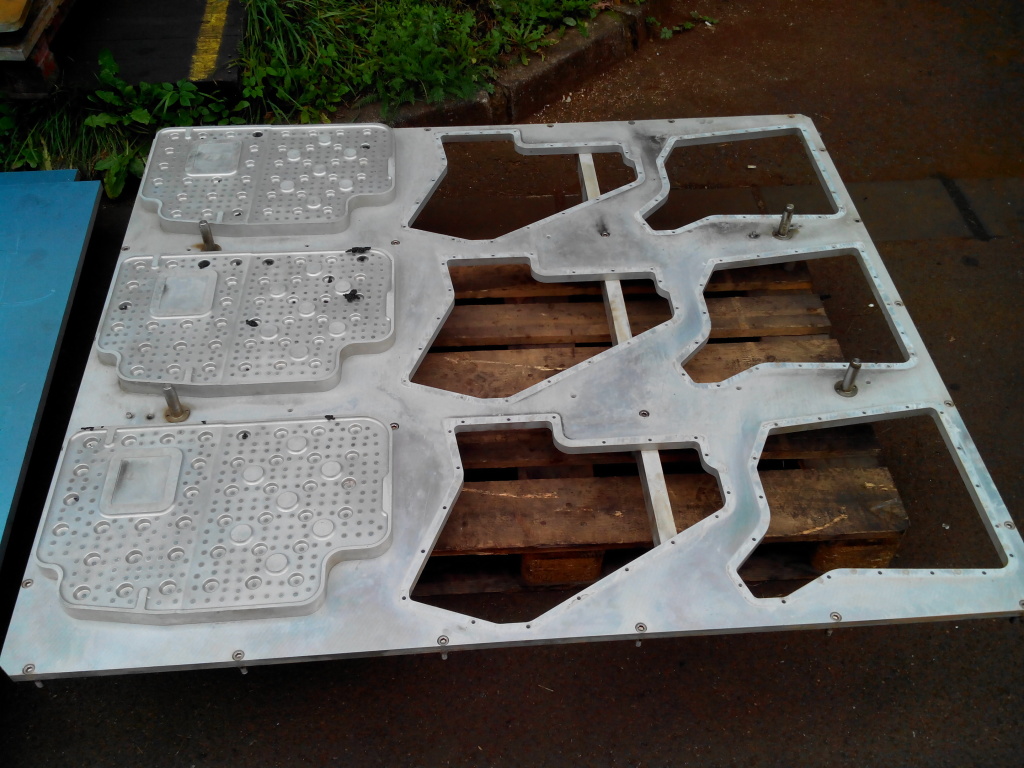

Examples of metal sheet forming tools made

We make tools with a weight of up to 5,000 kg and the maximum dimensions 2,000 x 2,500 x 1,500 mm.
  • progressive shearing tools
  • combined
  • block
  • bending

Realized moulds and tools – 5-axix centre

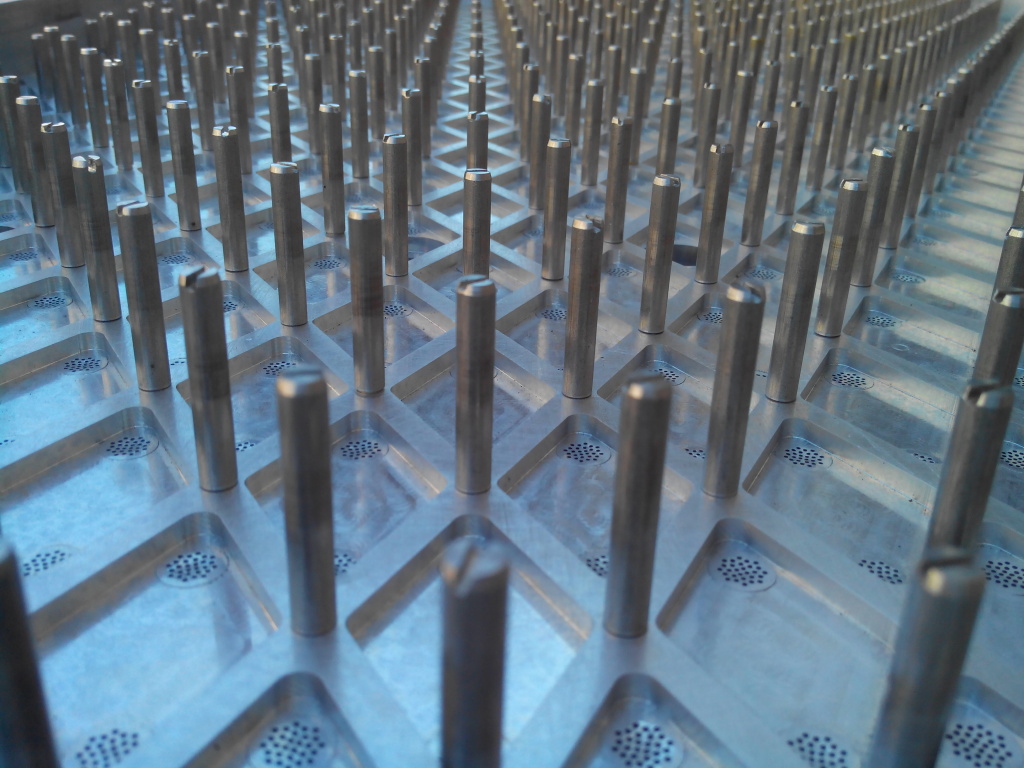

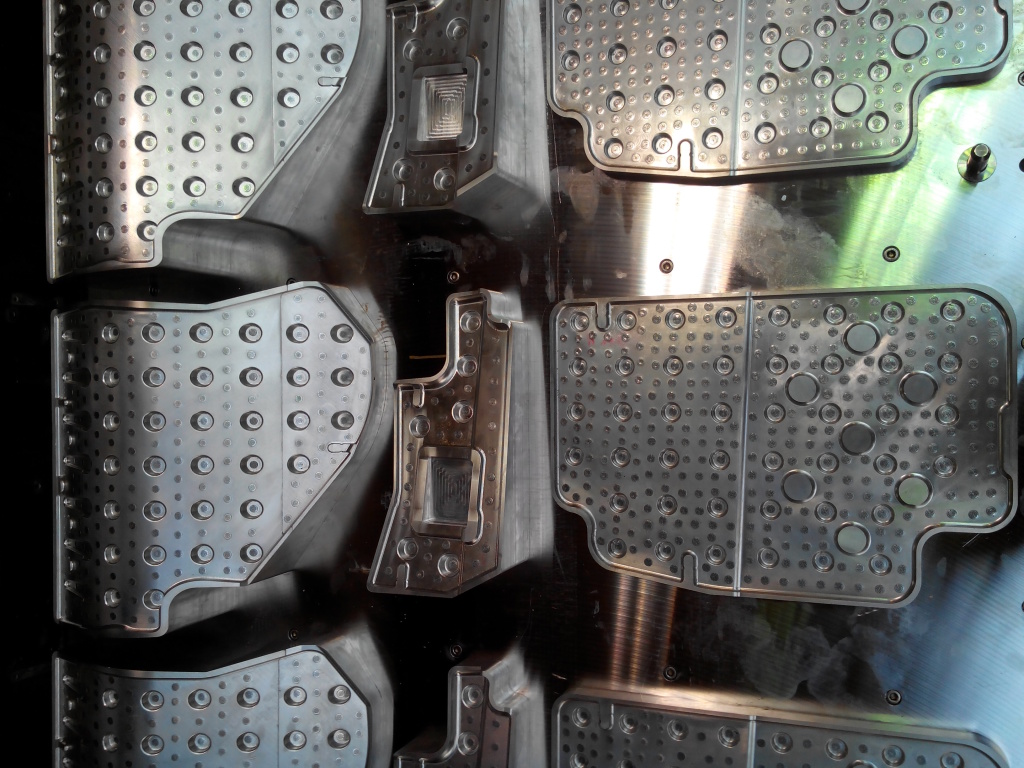

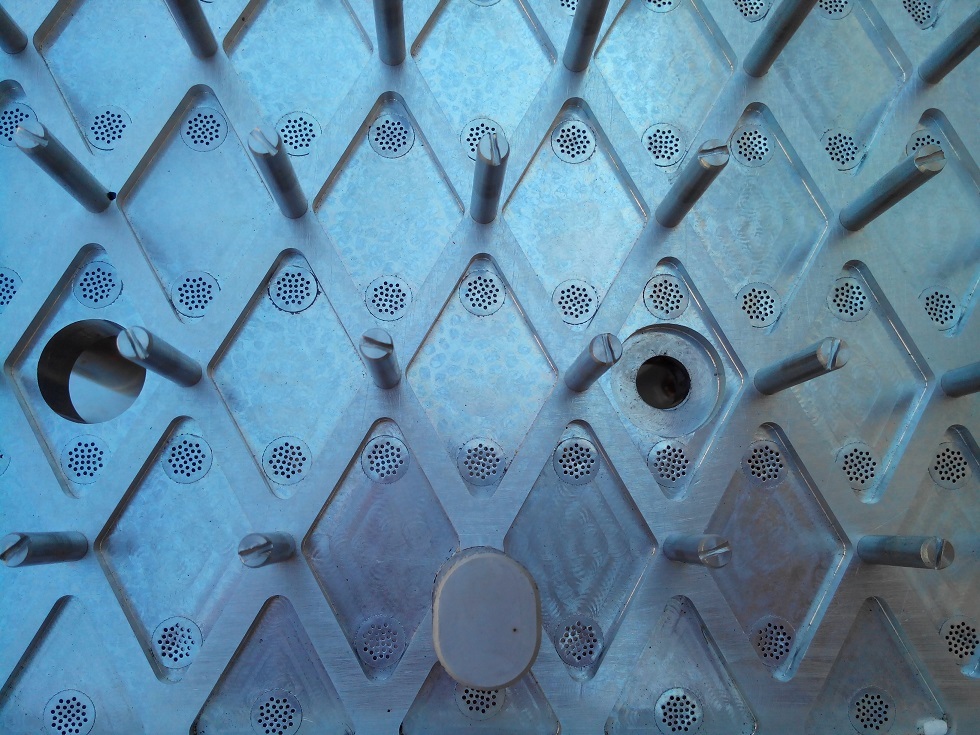

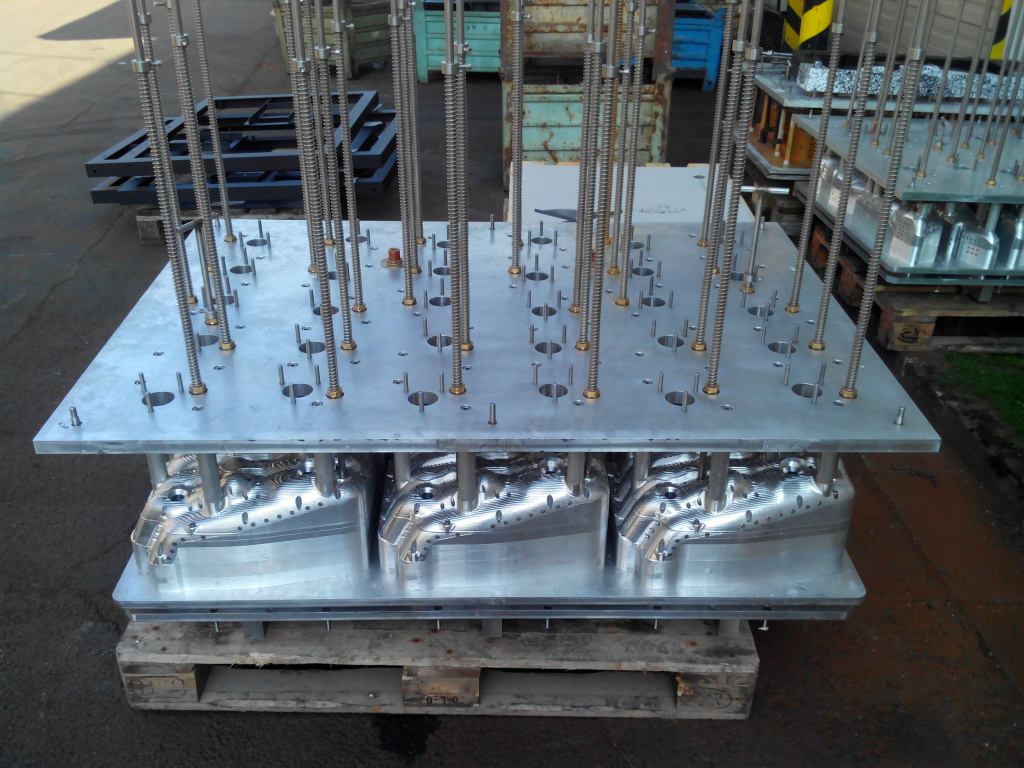

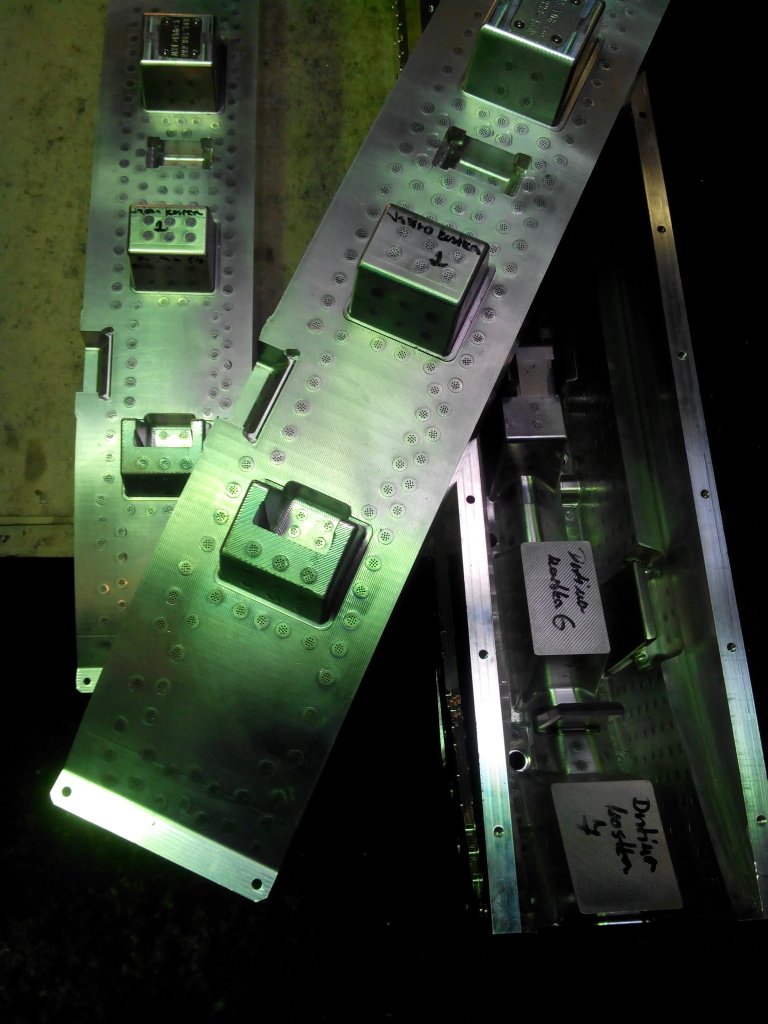

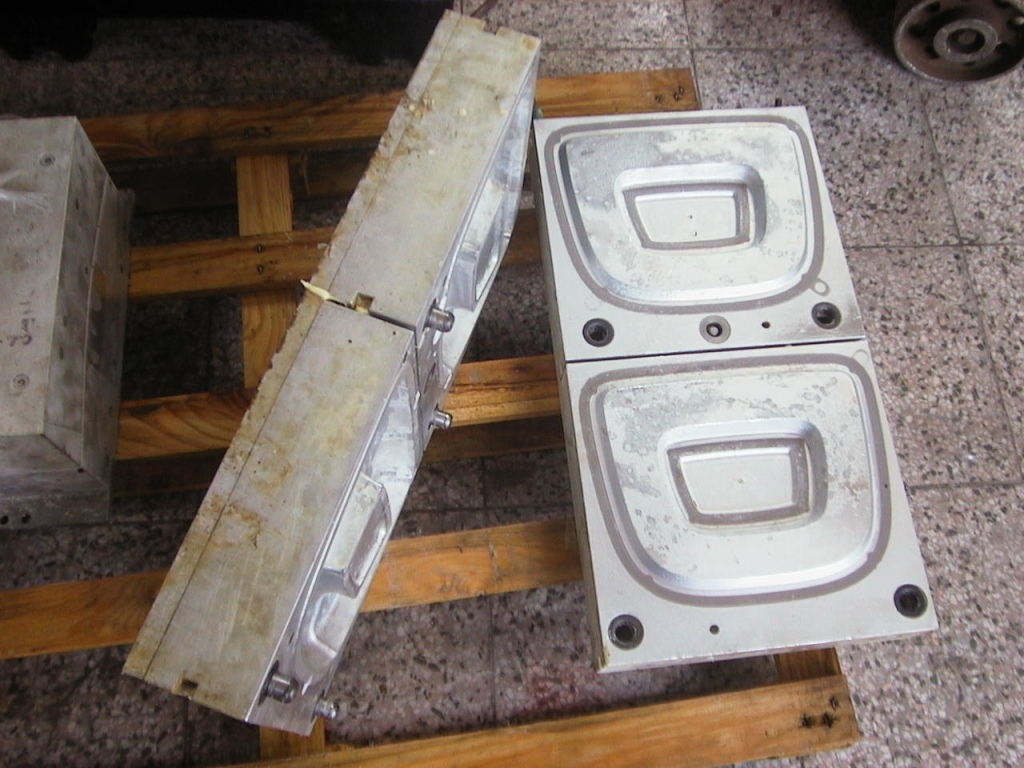

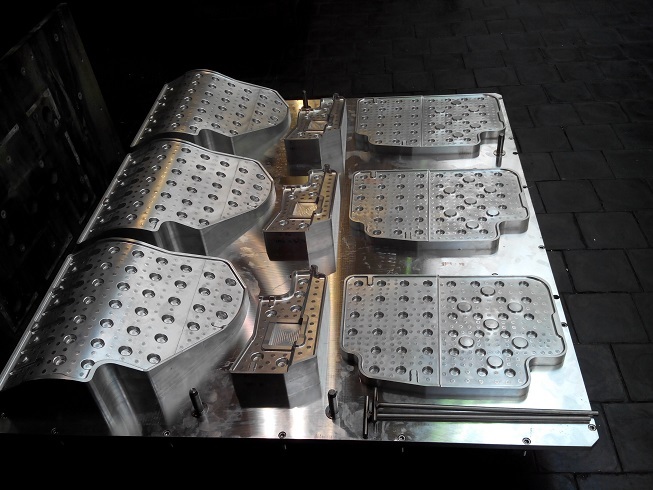

Making mouldsMaking moulds and toolsDetail of a mould madeWe manufacture tailored moulds and partsTailored moulds and toolsDevelopment of moulds and tools to orderMaking moulds and tools to orderInjection mould madeMaking tailored moulds and toolsMaking injection mouldsMaking moulds for injection

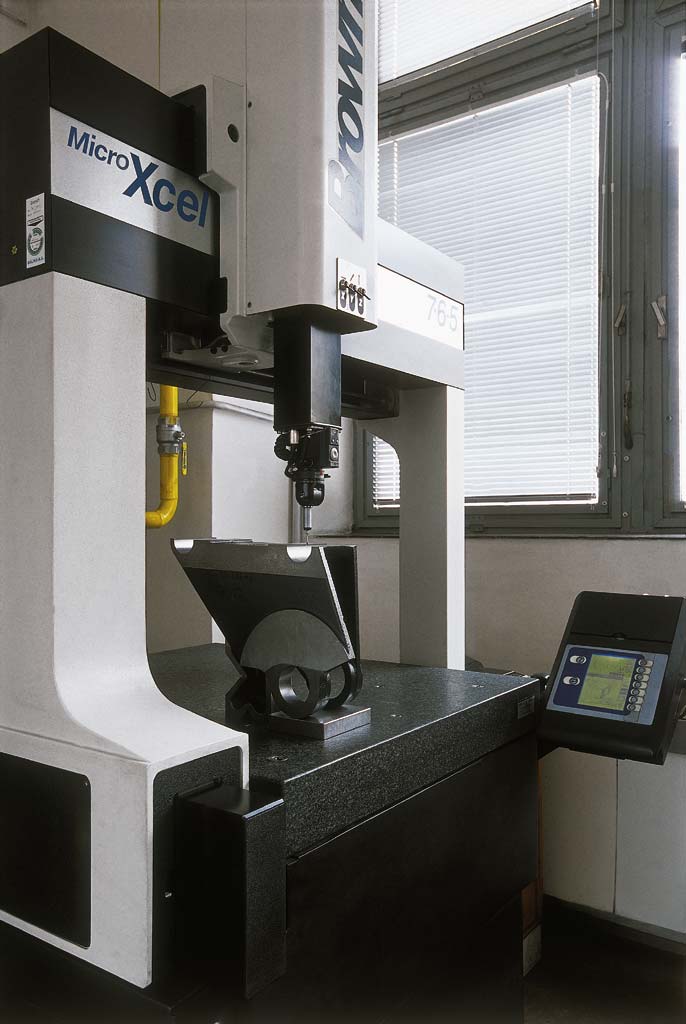

3D measurement of accuracy of manufacture

3D measurement of accuracy of manufacture
