Metal packaging

We can manufacture metal packaging for you exactly according to your requirements. If you need specific metal packaging or packaging combined with metal, please do not hesitate to contact us.

Our portfolio of metal packaging includes:

Fixed pallets

Fixed pallet structure: We manufacture fixed pallets from thin-walled closed sections with walls from resistance welded netting or from sheet steel stiffened by depressions.

Dimensions of fixed pallets: The most common dimensions are 600 x 800 x 640 mm and 1,200 x 800 x 1,000 mm and all of them are intended for stacking in at least 4 layers.

Applications of fixed pallets: Fixed pallets are used for the transport and storage of a wide range of products in various areas of industry.

Surface finish: A surface finish is performed as required by the customer either using synthetic paint or by hot galvanizing, cold galvanizing or powder coating (komaxit).

Collapsible pallets

Collapsible pallet structure:
These pallets are made from thin-walled closed sections with walls from resistance welded netting with plastics or from sheet steel reinforced by depressions. The posts of pallet structures have additional hinge joints of several types to collapse them easily and safely.

Dimensions of collapsible pallets:
The ground plan dimensions of a pallet are: a length of 1,200 mm to 2,400 mm and a width of 800 mm to 1,600 mm. The height of a pallet is from 620 mm to 1,600 mm when unfolded.

Applications of collapsible pallets:
These pallets are used for the transport and storage of semi-finished products and products of larger sizes, suitable especially for sub-suppliers in the automotive industry.

Surface finish: A surface finish is performed as required by the customer either using synthetic paint or by hot galvanizing, cold galvanizing or powder coating (komaxit).

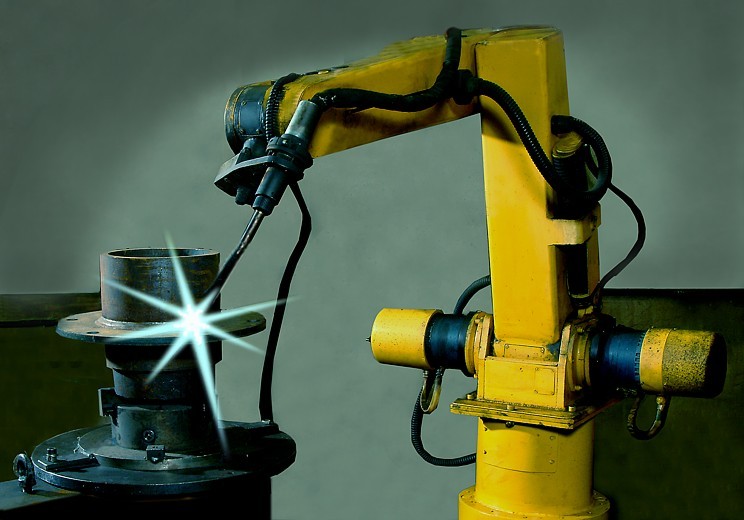

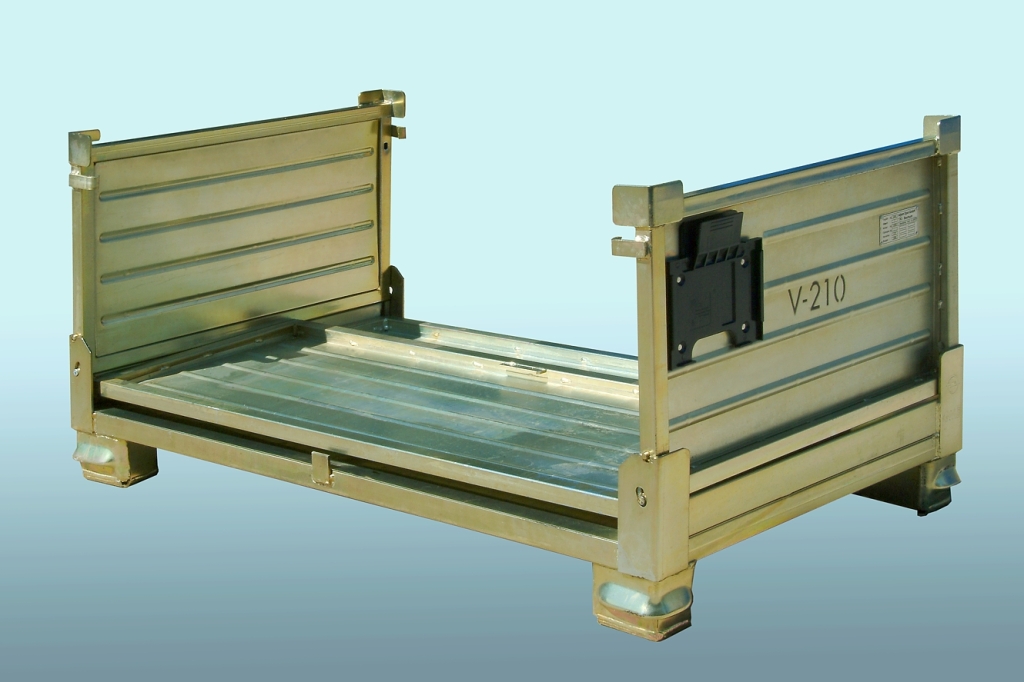

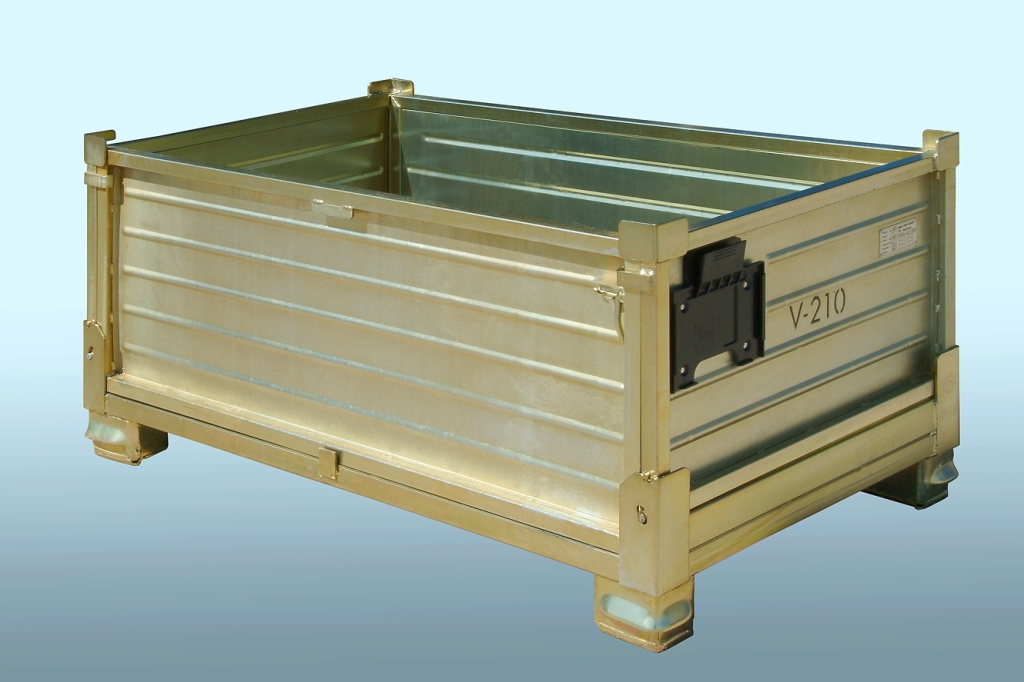

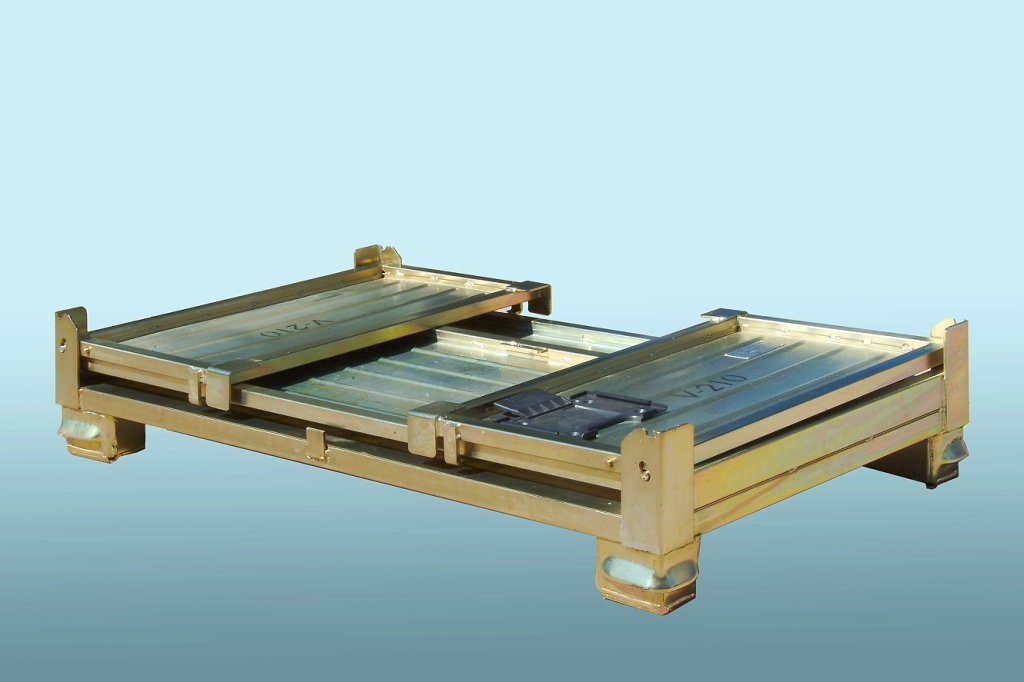

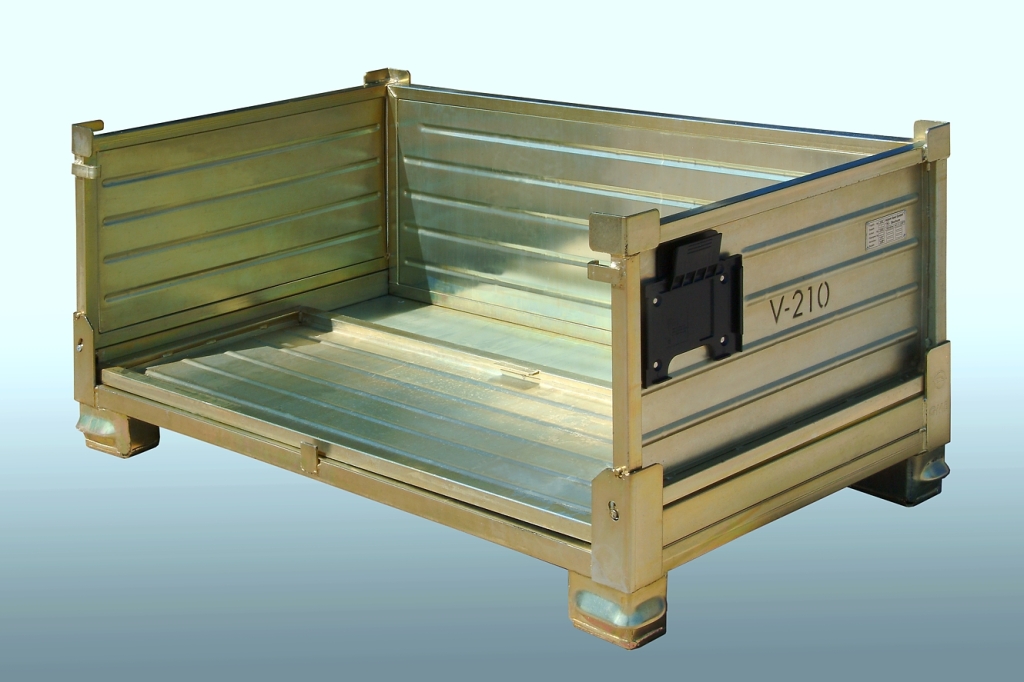

OJ10 and IGM welding robotsDetail of a metal pallet, completeDetail of a metal pallet – sides and rearDetail of a metal pallet with sidesDetail of a metal pallet, collapsed

Special transport containers

Special transport container structure:
These containers are mainly made from thin-walled closed sections, which are welded and then suitably combined with various types of plastics, special handles and fixing elements.

Dimensions of special transport containers:
The dimensions of transport containers depend on the elements to be transported.

Applications of special transport containers:
Special transport containers can be used for the transport and storage of parts and subgroups of cars or trucks in the automotive industry.

Surface finish: A surface finish is performed as required by the customer either using synthetic paint or by hot galvanizing, cold galvanizing or powder coating (komaxit).

Examples of metal packaging and pallets

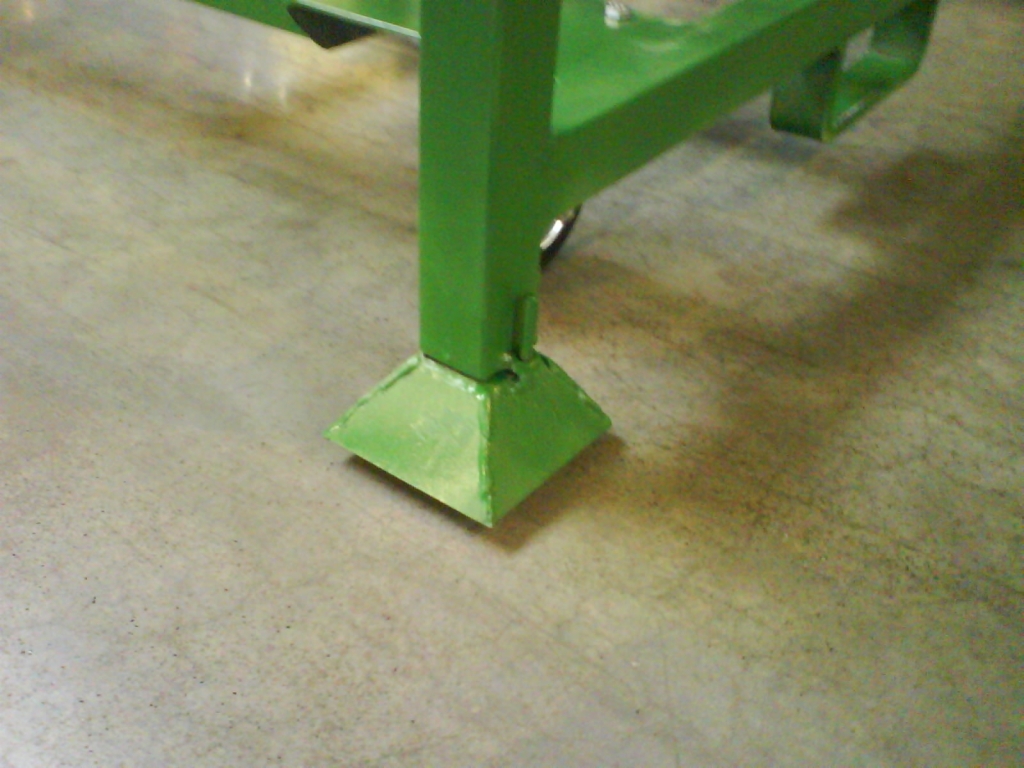

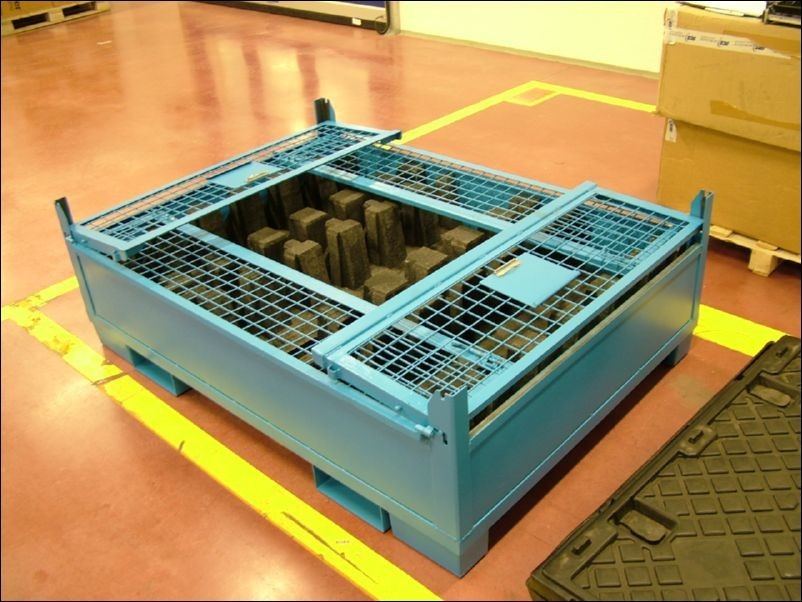

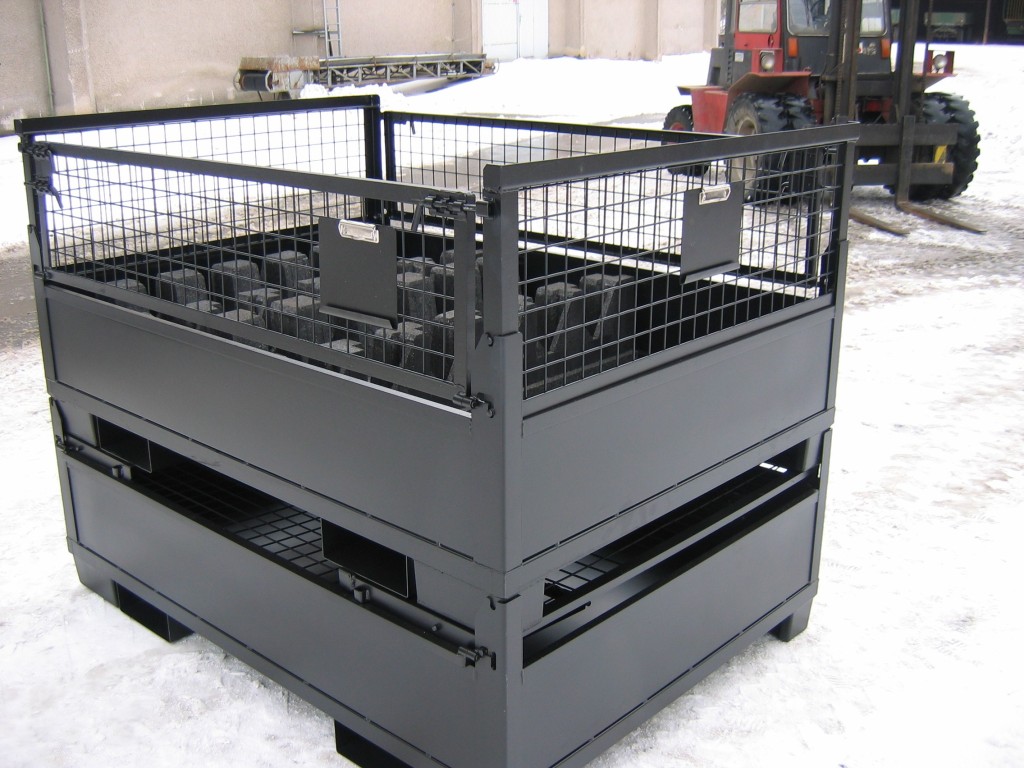

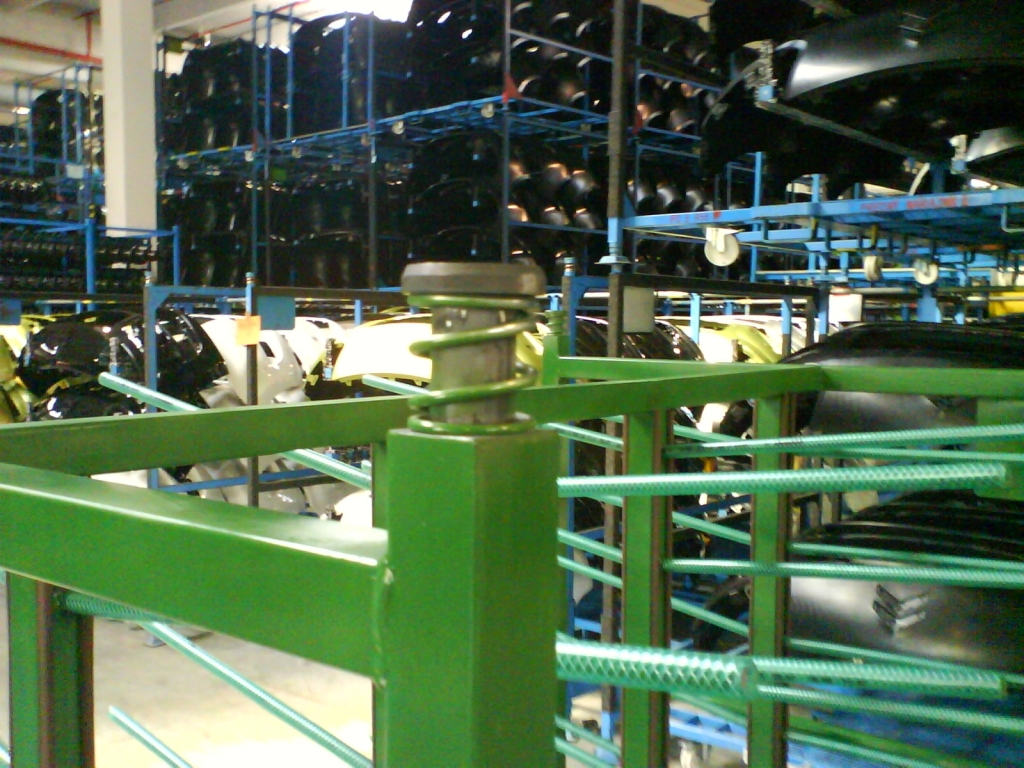

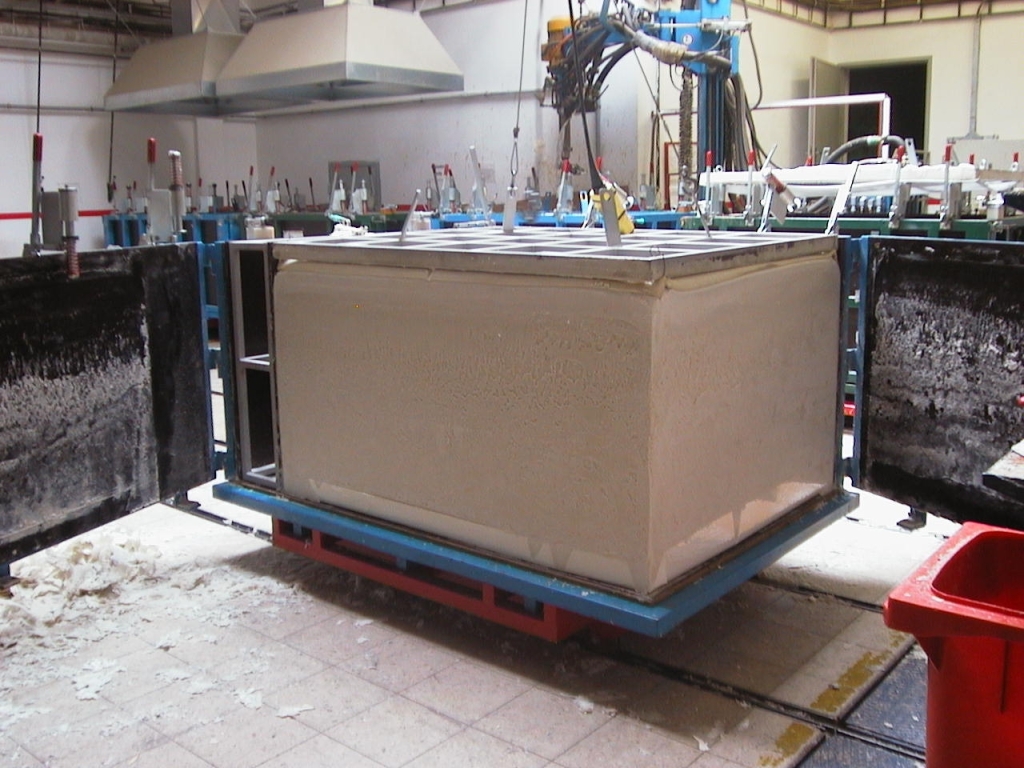

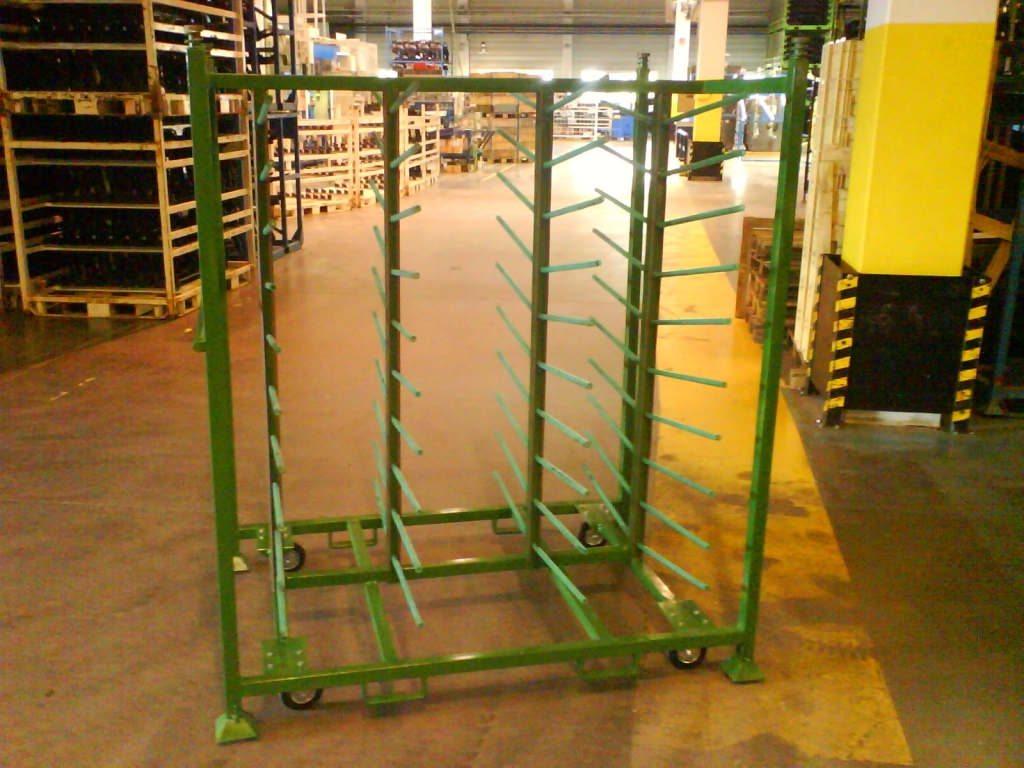

Metal packaging, racks, OmnipackMetal packaging, racksMetal packaging – racks, OmnipackMetal mould, OmnipackMetal packaging, plastic and metal combination, OmnipackMetal packaging, Omnipack

Manufactured metal pallets

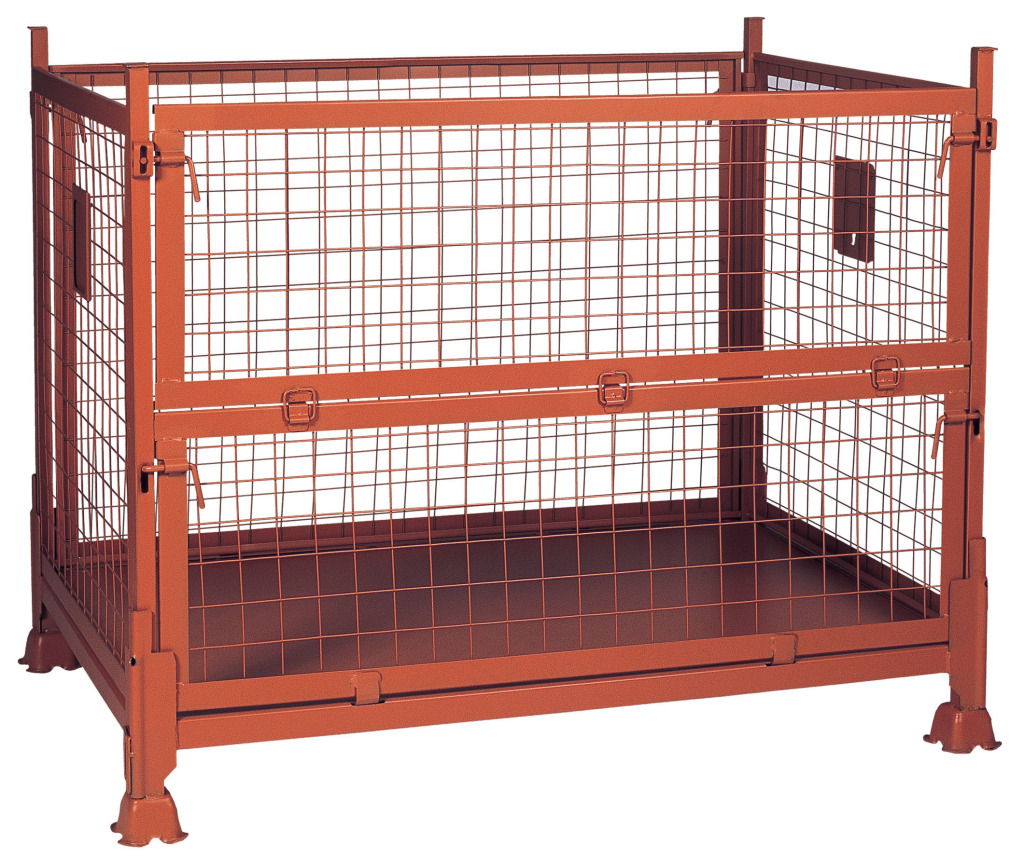

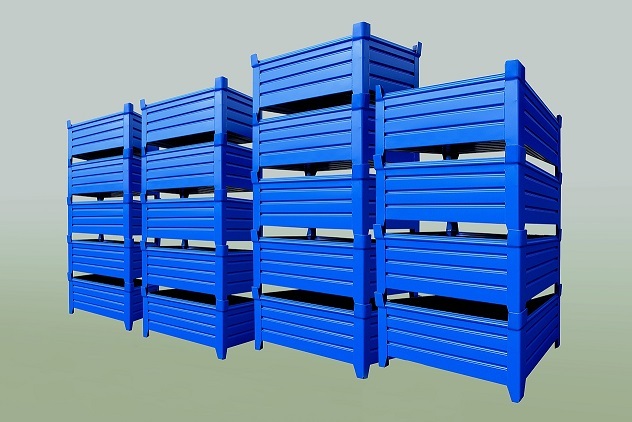

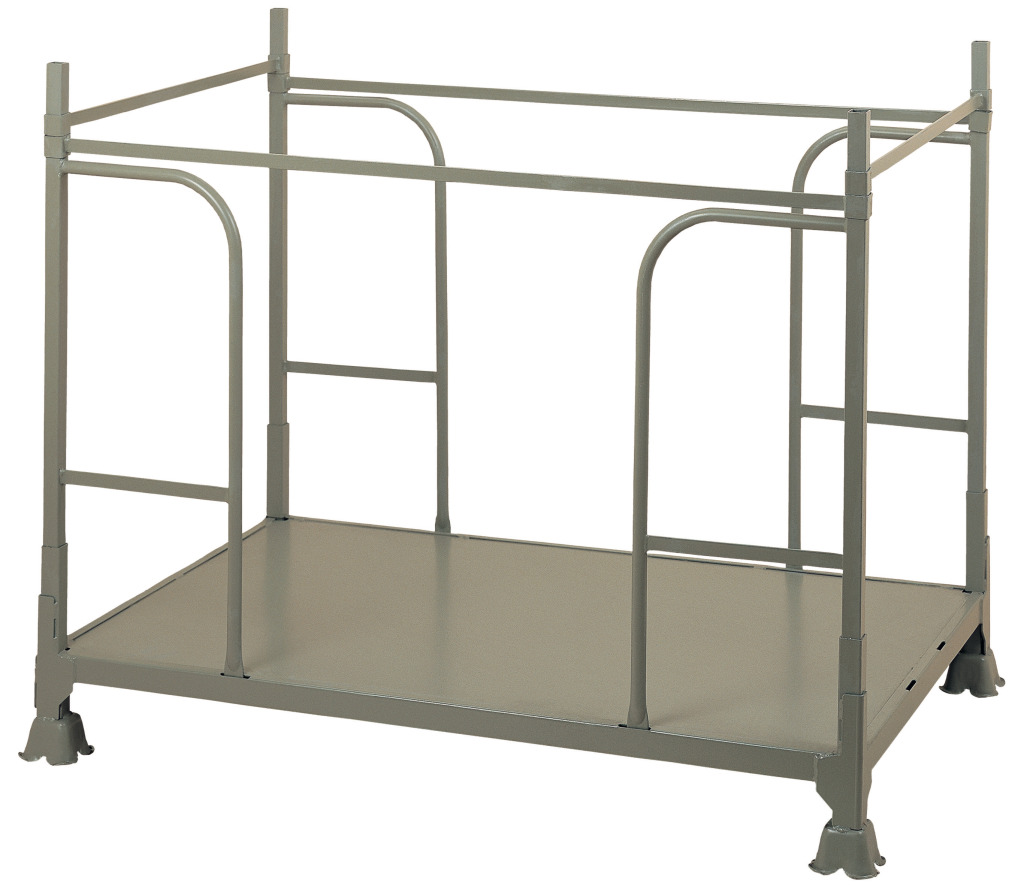

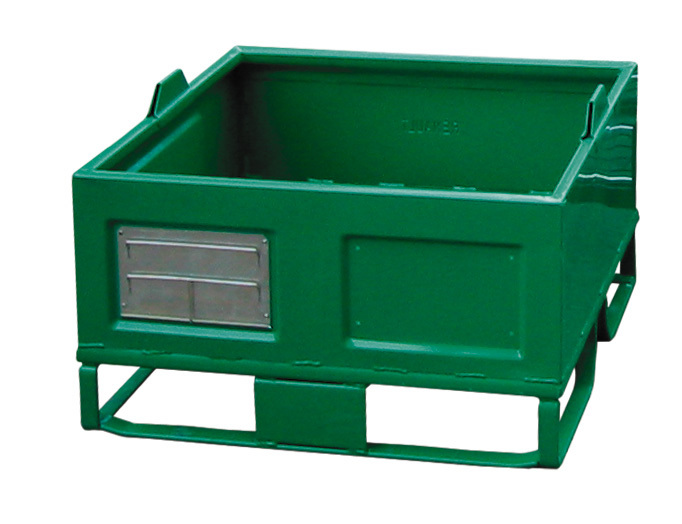

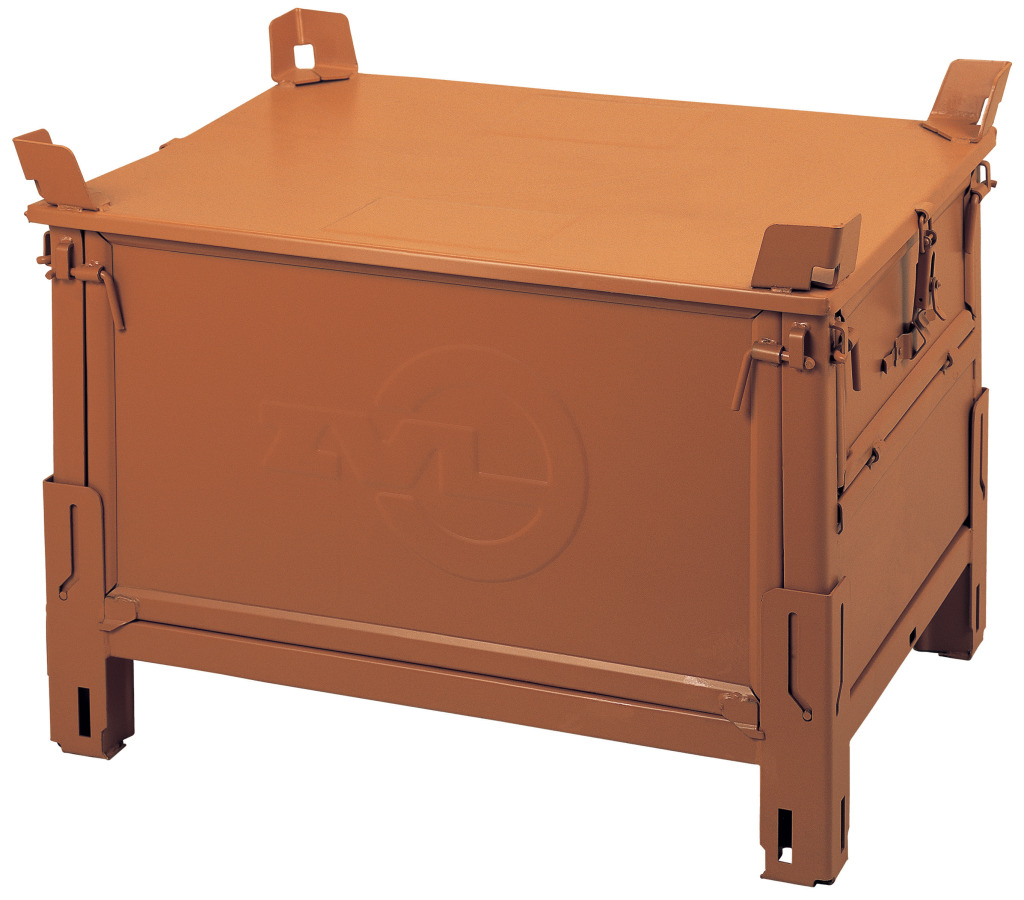

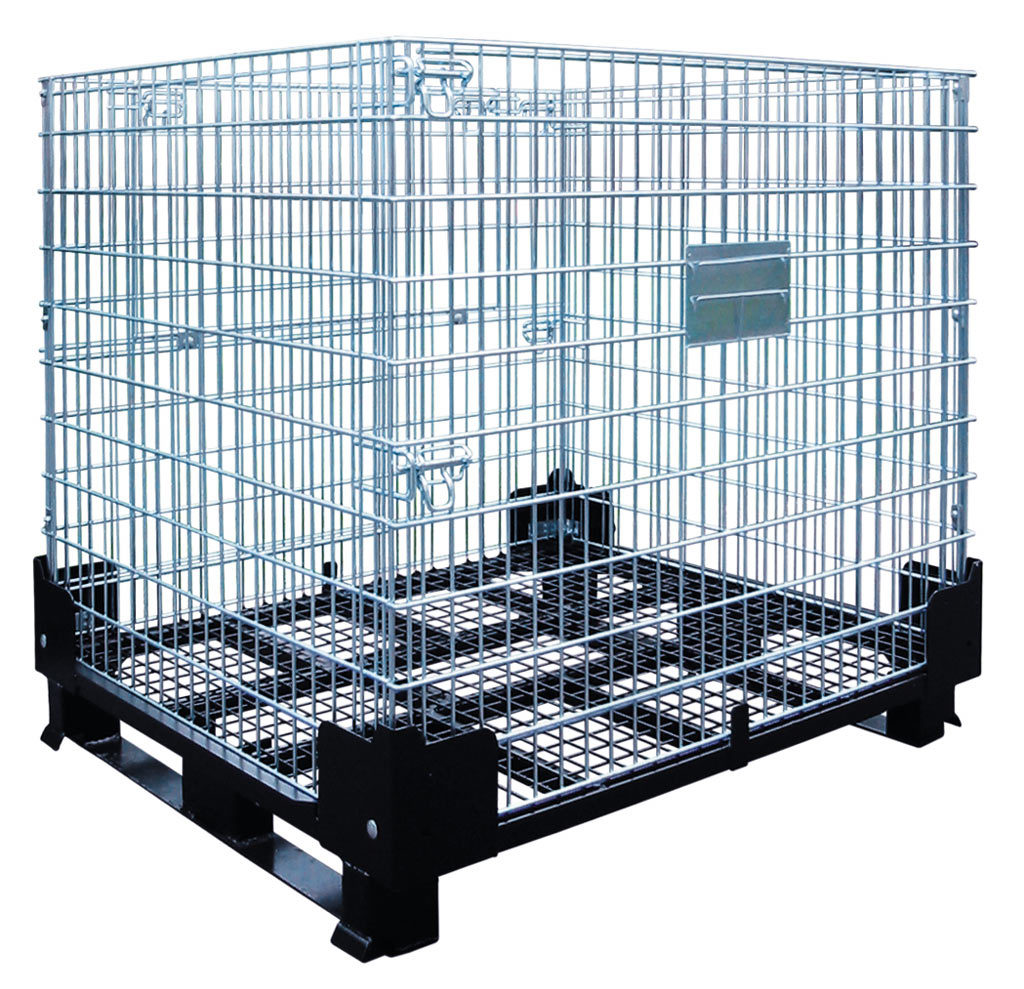

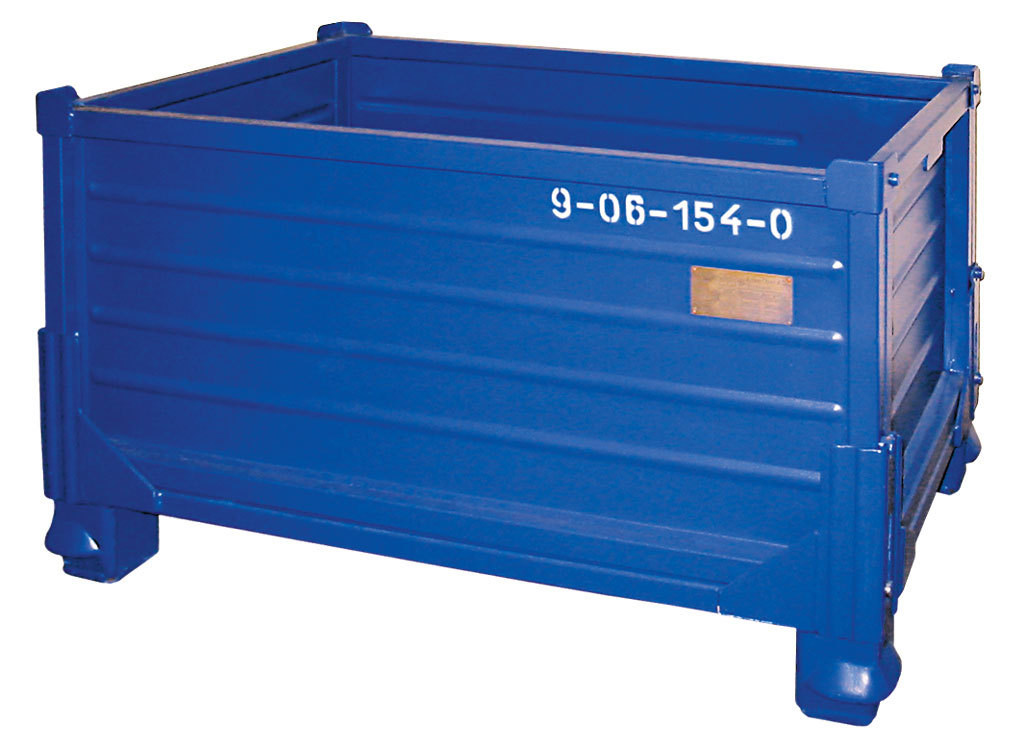

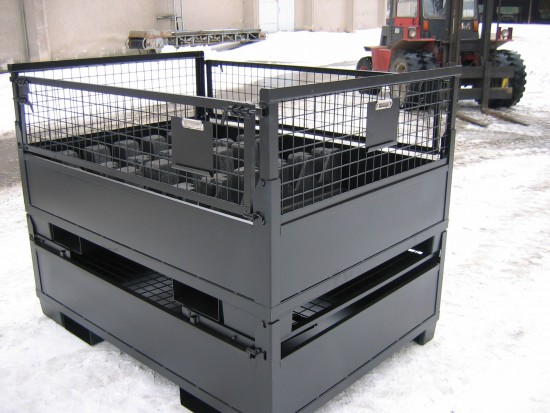

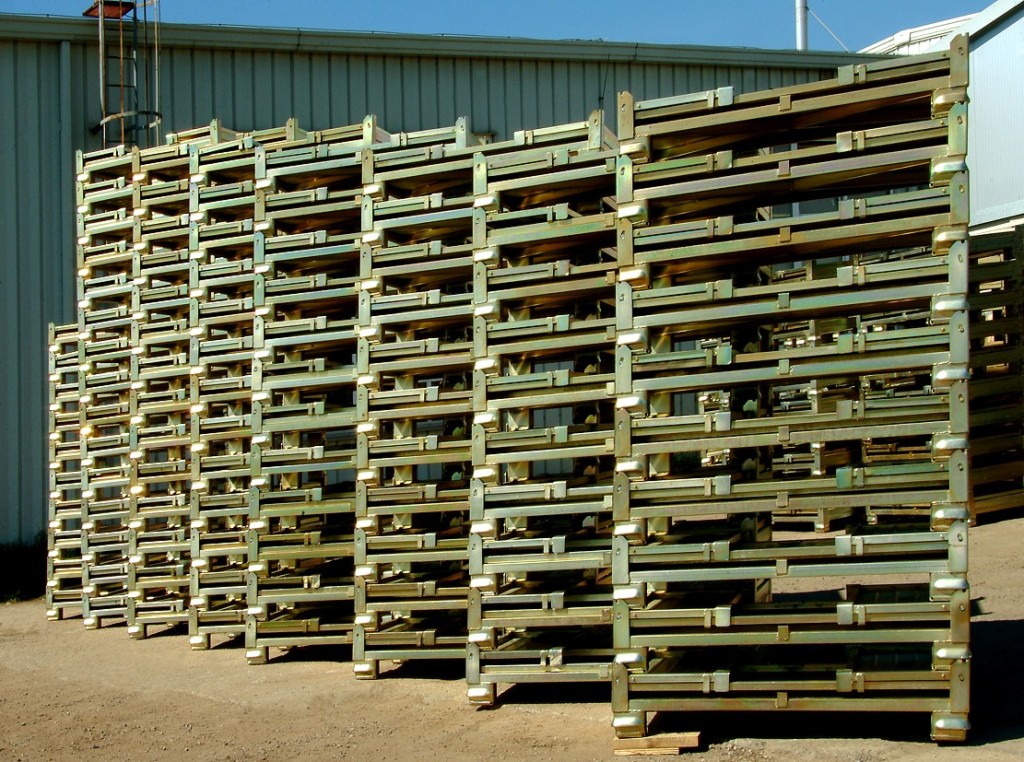

Manufacture of metal palletsManufacture of metal pallets to orderPallet – mesh box palletMetal pallet skkovMetal pallet – greenMetal pallet – post palletModels – palletsMetal pallet walls
